DAISAVE

DAISAVE Series of
Fluorinated Liquids

The DAISAVE series of fluorinated liquids is a brand
developed by Daikin featuring low-GWP fluorinated liquids.
The DAISAVE product series combines excellent thermal and chemical stability,
zero ozone depletion potential, low surface tension, low viscosity, good solubility,
and the drying properties necessary for effective cleaning.
In addition to their long-term lifespan, used DAISAVE products can be collected and recycled,
making them ideal for companies committed to a circular economy.

Daikin plans to expand the DAISAVE lineup to meet various industry needs,
including dry cleaning, particle removal, rinsing, fluorinated greases and coating agents,
heat transfer and coolant fluids for chillers, heat pipes and heat pumps,
and immersion liquid cooling for data centers.

Products

Selection guide

Details of the product range for the fluorinated liquid "DAISAVE" series can be viewed below.

Detailed product line-up

Solution

Cleaning

Solutions

Thermal Medium

Solutions

Solvent

Solutions

Dry Cleaning

Solutions

Data Center

Solutions

Introduction

Thermal Medium
Solutions

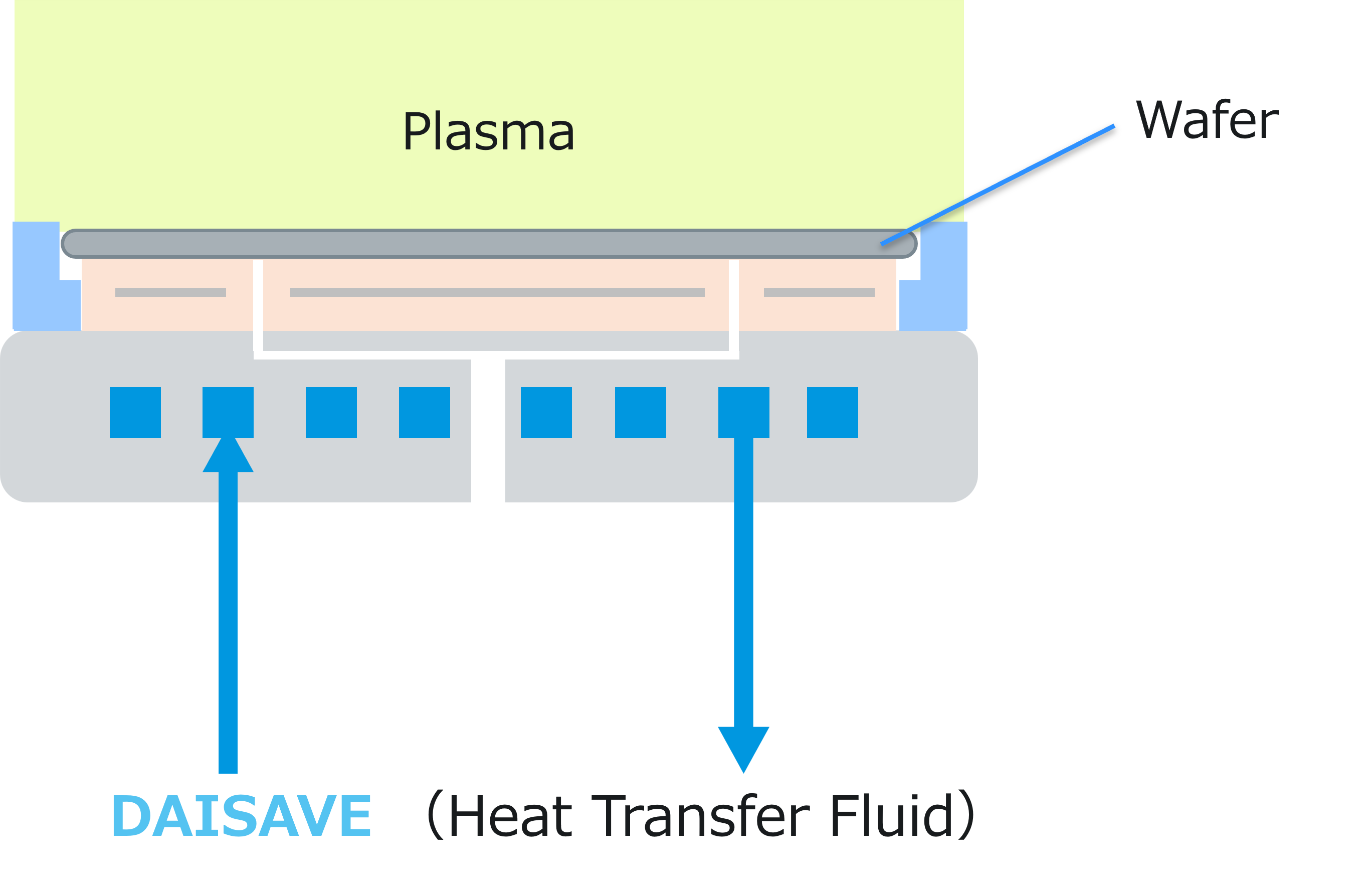

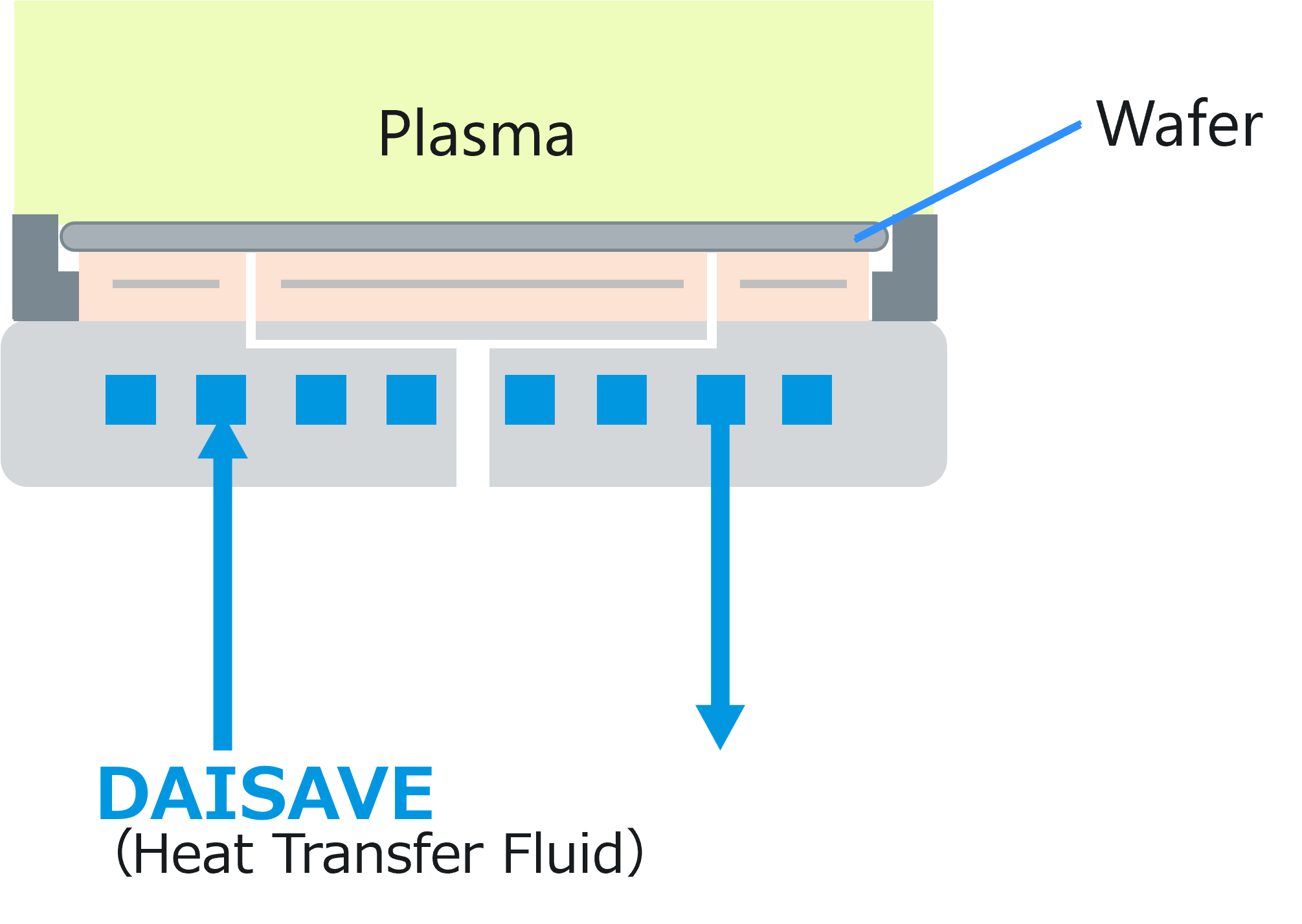

Heat Transfer fluids for the Semiconductor Manufacturing Processes

In semiconductor manufacturing processes such as etching, film deposition, and ion implantation, the demands for precise temperature control have become increasingly stringent due to the complexity and advancements in recent technologies. These processes cover a wide range of temperatures, from extremely low to high, making fluorinated liquids a preferred choice as heat transfer media. Key benefits include:

A wide operating temperature range, high thermal conductivity, and excellent thermal stability to meet diverse temperature control requirements.
High insulating properties that prevent electrochemical corrosion, enhancing the maintainability of equipment and installations.
No flash point and easy to handle. These inert and chemically stable properties make them suitable for use in clean rooms.

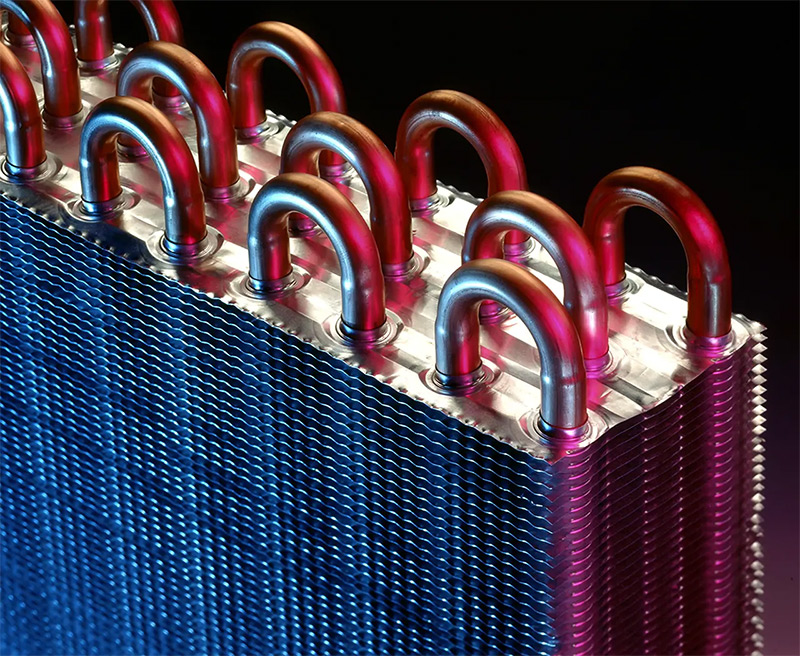

Working Fluids for Heat Pipes and Heat Pumps

Heat pipes, essential thermal conductivity elements used in various industrial and electrical appliances, require a working fluid with high heat transport capacity and low flow resistance. Fluorinated liquids, known for their high stability and compatibility with common materials, are increasingly recognized as long-term working fluids. Key advantages include:

High density, resulting in high thermal conductivity per unit flow rate and excellent thermal stability.
Low viscosity in both liquid and vapor phases, reducing the flow resistance of the working fluid.
No flash point and high stability, ensuring compatibility with wick and container materials.

Proposal

DAISAVE SS-110" and "SS-54"

DAISAVE "SS-110" and "SS-54" are advanced fluorinated liquids designed for use as heat transfer fluids in chillers used in the semiconductor industry. They are also ideal as heat transfer media for heat pipes and heat pumps.

Features

Wide Operating Temperature Range: Capable of meeting diverse temperature control requirements.
High Insulation and Stability: Ensures excellent compatibility with various equipment, facilities, and products.
Low Viscosity and Thermal Stability: Offers superior thermal conductivity, enhancing heat transport efficiency.
Environmentally Friendly: Zero ozone depletion potential (DP) and low global warming potential (GWP).
Handling Performanc: No flash point, providing excellent handling properties.

Applications

Electrostatic Chuck Temperature Control: For dry etching equipment.
Light Source Unit Temperature Control: For lithography systems.
Heat Carrier: For ion implanters.
Heat transfer media: For heat pipes. & Heat Pumps

Physical Properties

Item Category	Item	SS-110	SS-54
Operating Temperature Range	Boiling Point [℃]	110	54
Operating Temperature Range	Freezing Point [℃]	-130 or less	-92
Electrical Properties	Volume Resistivity [Ω・cm]	10¹³	10⁹
Electrical Properties	Dielectric Constant	2	8.9
Thermal Properties	Kinematic Viscosity [cSt] 25℃	0.95	0.40
	Thermal Conductivity [W⁄m・k] 25℃	0.064	0.081
	Specific Heat [kJ⁄(kg・K)] 25℃	1.03	1.31
	Density [g⁄cm³] 25℃	1.78	1.39
Flash Point［℃］		None	None
GWP		<100 ※Calculated value	101

Download materials

Technical Data Sheet SS-54

Technical Data Sheet SS-110

Introduction

Cleaning
Solutions

Agents for Particle Removal

The adhesion of particles during the manufacturing of precision electronic and optical components significantly impacts product quality. Recently, immersion ultrasonic cleaning with high-performance fluorinated cleaning agents has become widely adopted for removing adhered dust from products. These agents offer several benefits:

Their low viscosity and small surface tension allow them to penetrate narrow gaps and effectively remove particles.
A higher fluid density compared to water or IPA results in a greater impact force at the same flow rate, enhancing cleaning performance.
A wide range of ultrasonic frequencies can be chosen, minimizing damage to products and enabling single-agent cleaning.

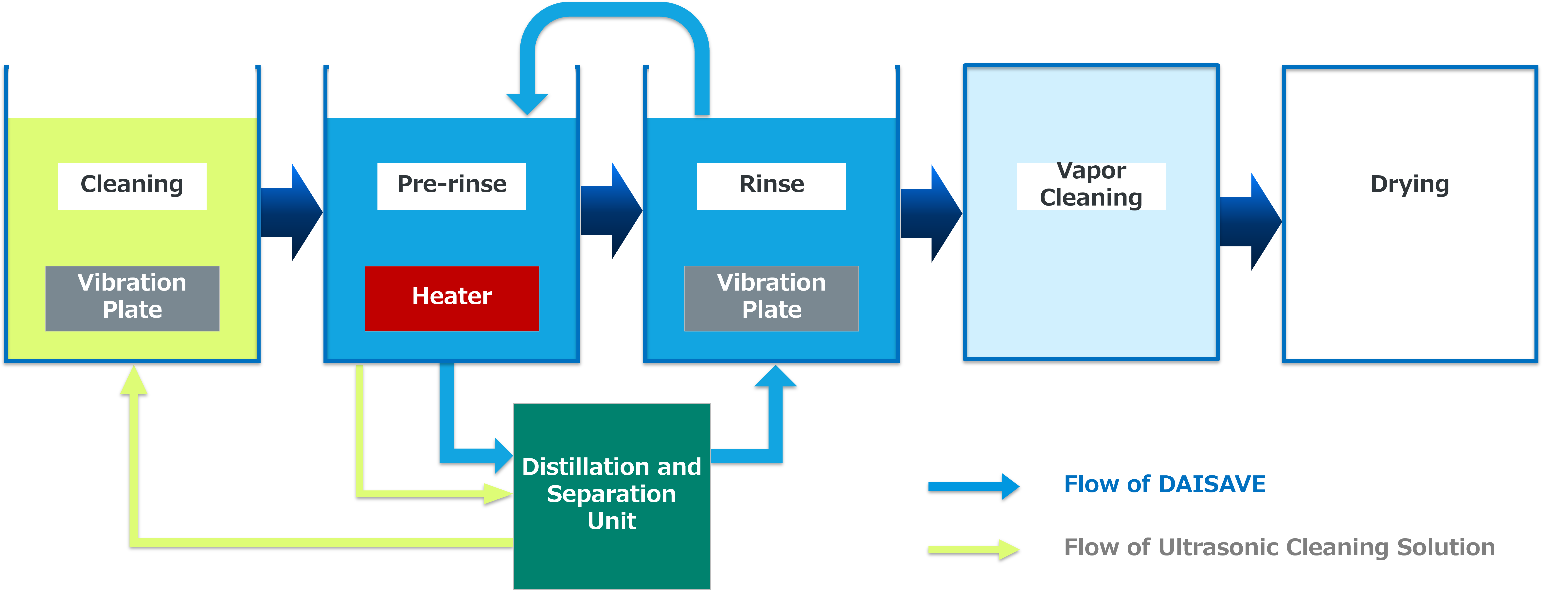

Agents for Rinse Cleaning

In the rinse cleaning process, which replaces water droplets adhered to the product surface, a method using fluorinated agents for cleaning and drying has been established to reduce drying time, improve quality, and lower equipment costs. These agents are particularly effective for cleaning parts with fine holes, narrow gaps, or those that cannot be cleaned at high temperatures. Benefits include:

Excellent quick-drying properties that allow for uniform drying, preventing water spots, improving drying yield, and shortening drying time.
Low-temperature drying, which reduces thermal impact on products compared to hot-air drying.
Low reactivity, reducing physical impact on products and allowing for the cleaning of a wide range of materials.

Proposal

DAISAVE "SS-54"

DAISAVE "SS-54" is a fluorinated liquid ideal for use as a cleaning agent in applications such as electronic components, optical components, and precision metal processing parts.

Features

Zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP = 101 (AR4)).
No flash point, providing excellent handling performance.
Low reactivity minimizes thermal and physical impact on products, making it suitable for various substrates.
Exceptional cleaning performance due to low viscosity, low surface tension, and high solubility.
Excellent quick-drying properties, expected to improve product quality and yield.

Applications

Cleaning pitch, wax, and protective film from optical lenses.
Cleaning sealants and adhesives from LCD panels.
Removing water and drying CCD and CMOS image sensors.

Physical Properties

Item Category	Item	SS-54
Operating Temperature Range	Boiling Point [℃]	54
Operating Temperature Range	Freezing Point [℃]	-92
Electrical Properties	Volume Resistivity [Ω・cm]	10⁹
Electrical Properties	Dielectric Constant	8.9
Thermal Properties	Kinematic Viscosity [cSt] 25℃	0.40
	Thermal Conductivity [W⁄m・k] 25℃	0.081
	Specific Heat [kJ⁄(kg・K)] 25℃	1.31
	Density [g⁄cm³] 25℃	1.39
Flash Point［℃］		None
GWP		101

Applicable Substrates

Resins	ABS, AS, Epoxy Glass, PA6, PA66, PBT, PC, PE, PET, PF, POM, PP, PPE, PPS, PS, PVC, PTFE, FEP, PFA
Rubber	Chloroprene Rubber, Chlorosulfonated Polyethylene Rubber, Nitrile Rubber, EPDM, Butyl Rubber, Natural Rubber
Metals	Magnesium, Aluminum, Titanium, Iron, Nickel, Copper, Zinc, Molybdenum, Silver, Tin, Tantalum, Tungsten, Lead, Brass, SUS304, SUS316

Download materials

Technical Data Sheet

Introduction

Solvent
Solutions

Dilution of Fluorinated Contact Grease & Coatings

Fluorinated coatings are extensively used for electronic components, precision parts, and optical components ddue to their superior properties, including:

Moisture-proof
Oil-resistant
Anti-fouling
Corrosion-resistant
Dust-proof
Chemical-resistant properties

Fluorinated solvents are safe to handle and ideal to dilute and form very thin film coatings on metals, glass, and resins, making them ideal for diluting fluorinated coatings. Key advantages include:

Small Surface Tension: Allows for the stable application of thin films, making them suitable for precision coatings.
No Flash Point: Eliminating the need for explosion-proof measures for coating and ventilation equipment, as well as electrical equipment like lighting.
Excellent Quick-Drying Properties: Shortens the time required for film formation, minimizing visual impact and enhancing efficiency.

Proposal

DAISAVE "SS-54"

DAISAVE "SS-54" is a high-performance liquid designed for diluting fluorinated greases, oils, and coatings. Its advanced properties make it an ideal choice for various applications in industries requiring precision and safety.

Features

Zero Ozone Depletion Potential (ODP) Environmentally friendly with no impact on the ozone layer.
Low Global Warming Potential (GWP = 101 (AR4)): Minimizes environmental impact.
No Flash Point: Provides excellent handling performance, reducing the risk of fire hazards.
Low Surface Tension: Promotes uniform dissolution or dispersion of fluorinated greases, oils, lubricants, and polymers.
Excellent Quick-Drying Properties: Enhances process efficiency and yield.
Low Reactivity: Ensures compatibility with a wide range of materials, preventing damage and degradation.

Applications

Dilution Solvent for Fluorinated Greases and Oils
Dilution Solvent for Fluorinated Coatings
Reaction Solvent in the Synthesis of Fluorinated Materials

Physical Properties

Item Category	Item	SS-54
Operating Temperature Range	Boiling Point [℃]	54
Operating Temperature Range	Freezing Point [℃]	-92
Electrical Properties	Volume Resistivity [Ω・cm]	10⁹
Electrical Properties	Dielectric Constant	8.9
Thermal Properties	Kinematic Viscosity [cSt] 25℃	0.40
	Thermal Conductivity [W⁄m・k] 25℃	0.081
	Specific Heat [kJ⁄(kg・K)] 25℃	1.31
	Density [g⁄cm³] 25℃	1.39
Flash Point［℃］		None
GWP		101

Download materials

Technical Data Sheet

Introduction

Dry Cleaning
Solutions

Solvent for Dry Cleaning

In dry cleaning, it is crucial to effectively remove stains while preserving the texture of the fabric and preventing chemical burns from cleaning odors or solvent residues. Fluorinated solvents are preferred for their easy handling and efficiency, offering several key benefits:

No Flash Point: Provides excellent handling performance and fewer restrictions on installation locations.
Distillable and Reusable: Fluorinated solvents can be frequently distilled and reused, maintaining a fresh state, reducing cleaning odors.
Gentle on Fabrics: Exhibits low reactivity with fabrics, resulting in a soft, flexible finish.

Proposal

DAISAVE "SS-54"

DAISAVE "SS-54" is a high-performance fluorinated liquid ideal for use as a solvent in dry cleaning applications.

Features

Zero Ozone Depletion Potential (ODP): Environmentally friendly with no impact on the ozone layer.
Low Global Warming Potential (GWP = 101 (AR4)): Reduces environmental impact.
No Flash Point: Provides excellent handling performance and offers flexibility in equipment installation locations.
Gentle on Fabrics: Maintains the texture and integrity of clothing without compromising quality.
Low Boiling Point: Facilitates repeated use through distillation, ensuring the solvent remains fresh.
Excellent Quick-Drying Properties: Enables rapid evaporation and drying, minimizing solvent residue on clothes.

Applications

Solvent for Dry Cleaning: Ideal for effective cleaning of various fabrics.

Physical Properties

Item Category	Item	SS-54
Operating Temperature Range	Boiling Point [℃]	54
Operating Temperature Range	Freezing Point [℃]	-92
Electrical Properties	Volume Resistivity [Ω・cm]	10⁹
Electrical Properties	Dielectric Constant	8.9
Thermal Properties	Kinematic Viscosity [cSt] 25℃	0.40
	Thermal Conductivity [W⁄m・k] 25℃	0.081
	Specific Heat [kJ⁄(kg・K)] 25℃	1.31
	Density [g⁄cm³] 25℃	1.39
Flash Point［℃］		None
GWP		101

Download materials

Technical Data Sheet

Introduction

Data Center
Solutions

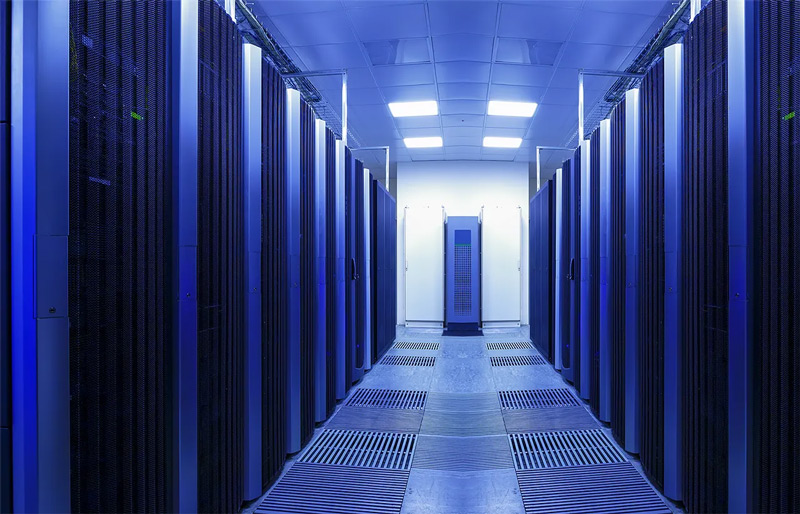

Immersion Cooling for Servers

With the rapid growth in data processing demands, managing heat in data centers has become increasingly critical, especially in high-density environments. Immersion cooling is emerging as a superior alternative to traditional air and water cooling methods. By submerging servers in fluorinated liquids, this method provides several key benefits:

Enhanced Cooling Efficiency: Direct immersion in the refrigerant eliminates the need for fans and pumps, leading to lower operational cooling costs.
Corrosion Prevention: Equipment is isolated from humidity and oxygen, significantly reducing the risk of corrosion-related failures.
Space Optimization: Smaller rack sizes allow for higher server density, making more efficient use of server room space.

proposal

DAISAVE "SS-49"（Under development: former name TSS-7）」

DAISAVE "SS-49"（Under development: former name TSS-7） is an advanced fluorinated liquid specifically designed for immersion cooling in server environments.

Features

High Insulation Property: Eliminates the risk of short-circuiting, ensuring safe operation of equipment.
High Insulation Property:Reduces the risk of equipment shorting.
Low Viscosity and Excellent Thermal Conductivity: Large heat transport capacity and excellent cooling efficiency.
No Flash Point:Easy to handle.
Low Global Warming Potential (GWP): Zero ozone depletion potential (ODP) and GWP less than 20 (calculated value).

Applications

Immersion Cooling for IT Hardware in Data Centers: Optimizes cooling performance and energy efficiency for high-density server setups.

Physical Properties

Item Category	Item	SS-49（Under development: former name TSS-7）
Operating Temperature Range	Boiling Point [℃]	49
Operating Temperature Range	Freezing Point [℃]	<-90
Electrical Properties	Dielectric Strength [kV]	>40
	Volume Resistivity [Ω・cm]	10¹⁶
	Dielectric Constant	1.8
Thermal Properties	Kinematic Viscosity [cSt] 25℃	0.36
	Thermal Conductivity [W⁄m・k] 25℃	0.064
	Specific Heat [kJ⁄(kg・K)] 25℃	1.10
	Density [g⁄cm³] 25℃	1.61
Flash Point［℃］		None
GWP		<20 ※Calculated value

Webinar

"DAISAVE" Liquid Series Webinar is Now Available!

The webinar for "DAISAVE" Liquid Series has been released.
You can watch videos introducing the features of the DAISAVE series
as well as explanations of technical information.
Please access the webinar viewing page via the button below to watch the videos.

Join Webinar

Contact

Please feel free to contact us
for detailed data and sample requests.
