DAI-EL Bisphenol Curable Copolymers
DAI-EL Bisphenol Curable Copolymers are 66% fluorine content copolymers of hexafluoropropylene and vinylidene fluoride.
These products exhibit the best heat resistance and lowest compression set among the DAI-EL family.
Most DAI-EL copolymers are supplied as cure incorporated precompound but specifically labeled base polymers (BP) are available.
These require the addition of a bisphenol curing agent and an accelerator.
DESCRIPTION
Excellent characteristic
- Heat resistance （～230℃）
- Oil resistance
- Fuel resistance
- Solvent resistance
- Low temperature property（Tg：-17℃）
Applications

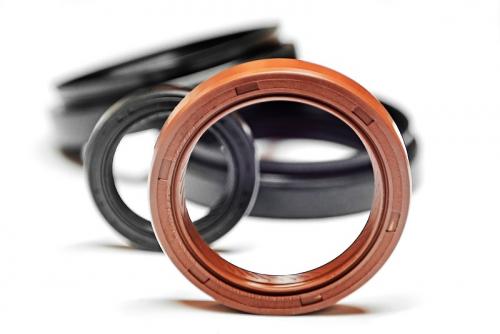

They are particularly suited for o-ring and oil seal applications in high-heat environments. We offer injection and compression molding grades, extrusion grades, metal adhesion grades, and compression set resistant grades.
GRADES & FEATURES
| GRADES |
Fluorine content (mass%) |
Mooney Viscosity (ML1+10@121℃) |
Features | DOWNLOADS |
|---|---|---|---|---|
| G-310HBP | 66 | 47 |
Excellent compression set. Suitable for compression molding. Not contain curing agent and accelerator. |
TECHNICAL DATA SHEET |
| G-310LBP | 66 | 23 |
Good mold flow. Suitable for injection molding and transfer molding. Not contain curing agent and accelerator. |
TECHNICAL DATA SHEET |
| G-310MBP | 66 | 36 |
Excellent compression set. Suitable for compression molding, transfer molding and injection molding. Not contain curing agent and accelerator. |
TECHNICAL DATA SHEET |
| G-311 | 66 | 36 |
Excellent compression set. Suitable for compression molding, transfer molding and injection molding. |
TECHNICAL DATA SHEET |
| G-343 | 66 | 23 |
Good mold flow. Suitable for injection molding and transfer molding. |
TECHNICAL DATA SHEET |
| G-372 | 66 | 30 |
Excellent elongation at break. Suitable for transfer molding and compression molding. |
TECHNICAL DATA SHEET |
| G-373 | 66 | 30 |
A good balance of roll mixing processability and mechanical properties. Suitable for transfer molding and compression molding. |
TECHNICAL DATA SHEET |
| G-381 | 66 | 40 |
Excellent compression set. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-383 | 66 | 40 |
Excellent compression set. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-701 | 66 | 41 |
Excellent compression set and mechanical properties. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-701BP | 66 | 41 |
Excellent compression set and heat resistance. Suitable for compression molding. Not contain curing agent and accelerator. |
TECHNICAL DATA SHEET |
| G-701M | 66 | 43 |
Excellent compression set and mechanical properties. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-702 | 66 | 41 |
Excellent tensile strength and elongation at break, It is suitable for molding complex shaped products. Suitable for transfer molding and compression molding. |
TECHNICAL DATA SHEET |
| G-704 | 66 | 30 |
Good mold flow. Suitable for injection molding and transfer molding. |
TECHNICAL DATA SHEET |
| G-704BP | 66 | 30 |
Good mold flow. Suitable for injection molding and transfer molding. Not contain curing agent and accelerator. |
TECHNICAL DATA SHEET |
| G-716 | 66 | 40 |
Excellent compression set and heat resistance. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-717 | 66 | 40 |
Excellent elongation at break, compression set and heat resistance. Vulcanizes quickly. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-7210BP | 66 | 28 |
Excellent compression set. Suitable for injection molding with good mold flow. Not contain curing agent and accelerator. |
TECHNICAL DATA SHEET |
| G-7211 | 66 | 23 |
Good compression set. Good roll mixing processability, mold flow and process safety. Suitable for injection molding. |
TECHNICAL DATA SHEET |
| G-723F | 66 | 41 |
Be released from mold easily. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-7320BP | 66 | 38 |
Excellent compression set. Suitable for injection molding and extrusion with good mold flow. |
TECHNICAL DATA SHEET |
| G-7400BP | 66 | 46 |
Excellent compression set. Suitable for injection molding with good mold flow. |
TECHNICAL DATA SHEET |
| G-7401 | 66 | 41 |
Exellent compression set, mold flow and process safety. Suitable for injection molding. |
TECHNICAL DATA SHEET |
| G-742F | 66 | 30 |
Excellent mold flow. Suitable for injection molding and transfer molding. |
TECHNICAL DATA SHEET |
| G-751 | 66 | 32 |
Excellent roll mixing processability and adhesion to metal. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-755 | 66 | 25 | Exellent extrusion processability. | TECHNICAL DATA SHEET |
| G-755BP | 66 | 29 |
Exellent extrusion processability. Not contain curing agent and accelerator. |
TECHNICAL DATA SHEET |
| G-755F | 66 | 25 | Exellent extrusion processability. | TECHNICAL DATA SHEET |
| G-763F | 66 | 32 |
Excellent roll mixing processability and adhesion to metal. Suitable for compression molding. |
TECHNICAL DATA SHEET |
| G-7801 | 66 | 66 |
Excellent sealing properties with lowest compression set of DAI-EL. Suitable for compression molding with good mold flow and process safety. |
TECHNICAL DATA SHEET |
| G-797 | 66 | 25 |
Excellent mold flow and mechanical properties. Suitable for compression molding. |
TECHNICAL DATA SHEET |
