Fluoroelastomers
DAI-EL fluoroelastomer products provide excellent high temperature and aggressive fluids resistance in sealing and fluid transport applications for automotive, oil and gas, chemical process, small engine, and other harsh sealing environments.
DESCRIPTION
Feartures of DAI-EL fluoroelastomer

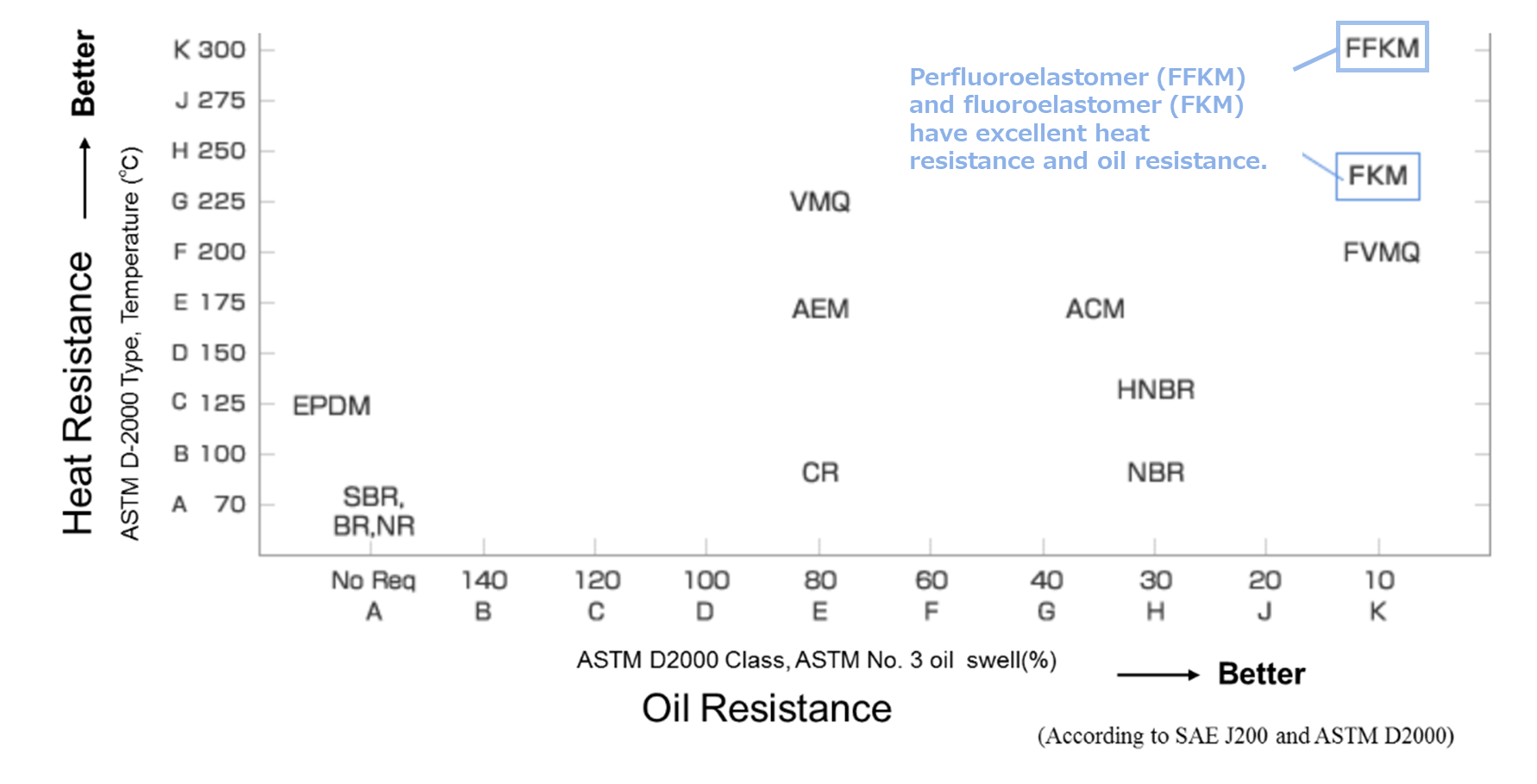

Compared with other elastomers, DAI-EL fluoroelastomer products provide excellent high temperature and aggressive fluids resistance.
DAI-EL fluoroelastomer structure
Effect of Fluorine Content
The fluorine content of a DAI-EL grade affects many things, especially low temperature properties and fluid resistance. In general, the lower the service temperature and volume swell of a compound, the better. However, as the chart below depicts, when selecting a fluoroelastomer there is generally a tradeoff between the two properties. For low temperature operating conditions, consider selecting a DAI-EL low temperature or copolymer grade. For sealing against aggressive fluids or other media, consider a 71% fluorine terpolymer or even a perfluoroelastomer.
Application
DAIKIN’s DAI-EL fluoroelastomer products are used in a wide variety of industries and applications. In general, fluoroelastomers are selected due to their superior heat and chemical resistance when compared with other types of rubber. While each market requires different balances of those strengths, DAI-EL can offer grades that exceed most any requirementc
- Automotive: OEMs continue to increase fuel efficiency, reduce emissions, eliminate fluid leaks and improve the efficiency of their systems.
- Chemical plants: Aggressive chemicals, steam, acids, and bases require sealing materials with above average fluid resistance and long-term operability
- Oil & Gas: Drilling processes and other downhole fluids contain additives likely to degrade standard rubber.
- Medical & Food: O-rings, gaskets, shaft seals and flexible connectors for food processing equipment where heat or aggressive chemicals impact rubbers performance
- Consumer and wearable: Soft, flexible, non-reactive materials which don't degrade in contact with oils and perspiration are required
- Aerospace: high operating temperatures and high altitudes require superior heat resistance and low-temperature performance
DAI-EL Fluoroelastomers for harsh temperatures and fuel contact environments
To meet all these requirements, DAIKIN has developed DAI-EL, a wide range of fluoroelastomer solutions providing superior temperature resistance. It also combines the most effective stability to all sorts of chemicals and fluids such as oil, diesel, ethanol mix or body fluid. With low permeation rate, DAI-EL fluoroelastomer allows meeting stringent automotive regulations about gas emission by reducing leakage significantly.
DAI-EL grades can also provide optimal flow-ability and compression set.
DAI-EL fluoroelastomers also offer to consumer goods designers, new colorability options and innovative touch experience, while ensuring resistance to everyday life aggression.
This comprehensive FKM portfolio covers the full range of copolymers and terpolymers for bisphenol and peroxide curing as well as specialty elastomers and ready to use compound
- Bisphenol curable copolymers and terpolymers
- Peroxide-curable co- and terpolymers
- Low-temperature type polymers (LT) – Peroxide curable
- Base resistant elastomer (BRE) – Peroxide curable
- Specialty elastomers - Liquid elastomer, Thermoplastic fluoroelastomer
- Cri-Tech Custom Compounding
- Color Compounding
DAI-El complex polymer design allows stable extrusion and molding processes for every type of technical rubber parts and fitting in a wide range of processing constraints, reducing the risk of failures and increasing productivity.
Since no development challenge is similar to another, Daikin puts at specifiers and producers’ disposal its experimented team of technical engineers to select develop and produce the most performing parts.
GRADES & FEATURES
GRADES | Features | Typical Applications | |
---|---|---|---|
Type | Curing System | ||
Copolymer | Bisphenol Curable |
Good compression set resistance Good sealing |
Oil seal Crank shaft seal Valve system seal Bearing seal Fuel hose Turbo charger hose O-ring |
Peroxide Curable MORE |
Good mechanical properties Good chemical resistance Good acid resistance Good steam resistance Anti-flex fatigue |
||
Terpolymer |
Bisphenol Curable MORE |
Strong polar solvent resistance Good compression set resistance Good sealing |
|
Peroxide Curable MORE |
Strong polar solvent resistance Good chemical resistance Good acid resistance Good steam resistance |
||
Diamine Curable |
Strong polar solvent resistance Good mechanical properties |
||
Low Temperature type polymer |
Peroxide Curable |
Excellent low temperature sealing properties Excellent mechanical properties Good acid resistance Anti-flex fatigue |
Injector O-ring Diaphragm |
Base Resistant Elastomer |
Peroxide Curable |
Excellent mechanical properties Excellent base resistance Excellent coolant resistance Excellent engine / transmission oil resistance Good acid resistance Excellent anti-flex fatigue |
Oil seal Bearing seal Coolant seal Packer seal Turbo charger hose O-ring |
Specialty Elastomer | Liquid Elastomer |
Improvement of processability Reduction of hardness |
Process aid |
Thermoplastic fluoroelastomer | At room temperature, it shows elasticity, and at high temperature over melting point, it shows good flowability like thermoplastics. | Semiconductor O-ring | |
DAI-EL Compound |
Bisphenol Curable Peroxide Curable |
*Cri-tech Custom Compounding MORE |
|
DAI-EL Color CompoundMORE |
- |
Colorability Durability Supple touch Low friction |
Wearables Consumer goods |
